Understanding Your C-Wire (and the Mysa C-Wire Adapter)Updated 7 days ago
C-Wire Guide for Mysa for Central HVAC
Every smart thermostat needs reliable power to stay connected and control your HVAC system. For Mysa for Central HVAC, that power comes from the C-wire — short for “common wire.” This guide explains what a C-wire does, how to tell if you already have one, what to do if you don’t, and how Mysa’s C-Wire Adapter (CWA) makes installation simple when one isn’t present.
What Is a C-Wire?
The C-wire (or common wire) is a low-voltage power wire that provides a steady 24 volts (AC) to your thermostat. It completes the electrical circuit between your HVAC system’s control board and your thermostat — keeping it powered even when heating or cooling isn’t running.
R (Red) wire supplies 24 V power from your HVAC system.
C (Common) wire returns power to complete the circuit.
Smart thermostats like Mysa for Central HVAC use this constant 24 V to power their display, Wi-Fi, and smart-home features. Without a C-wire, your thermostat may not stay powered consistently — or may not power on at all.
Why Mysa for Central HVAC Needs a C-Wire
Mysa for Central HVAC is designed for 24-volt (low-voltage) HVAC systems that provide continuous power through the R and C wires. The C-wire powers Mysa’s Wi-Fi connection, smart-home integrations, and app control — ensuring your thermostat stays online and responsive at all times.
Tip: Older thermostats often didn’t need a C-wire because they ran on battery power or drew a small charge from control circuits. Smart thermostats like Mysa for Central HVAC use more consistent power to support Wi-Fi and processing — that’s why a C-wire is required.
How to Check If You Already Have a C-Wire
Before purchasing or removing your old thermostat, check for a C-wire. There are three quick ways to find out:
At the thermostat:
Remove your existing thermostat and look for a wire connected to a terminal labeled C.Behind the wall:

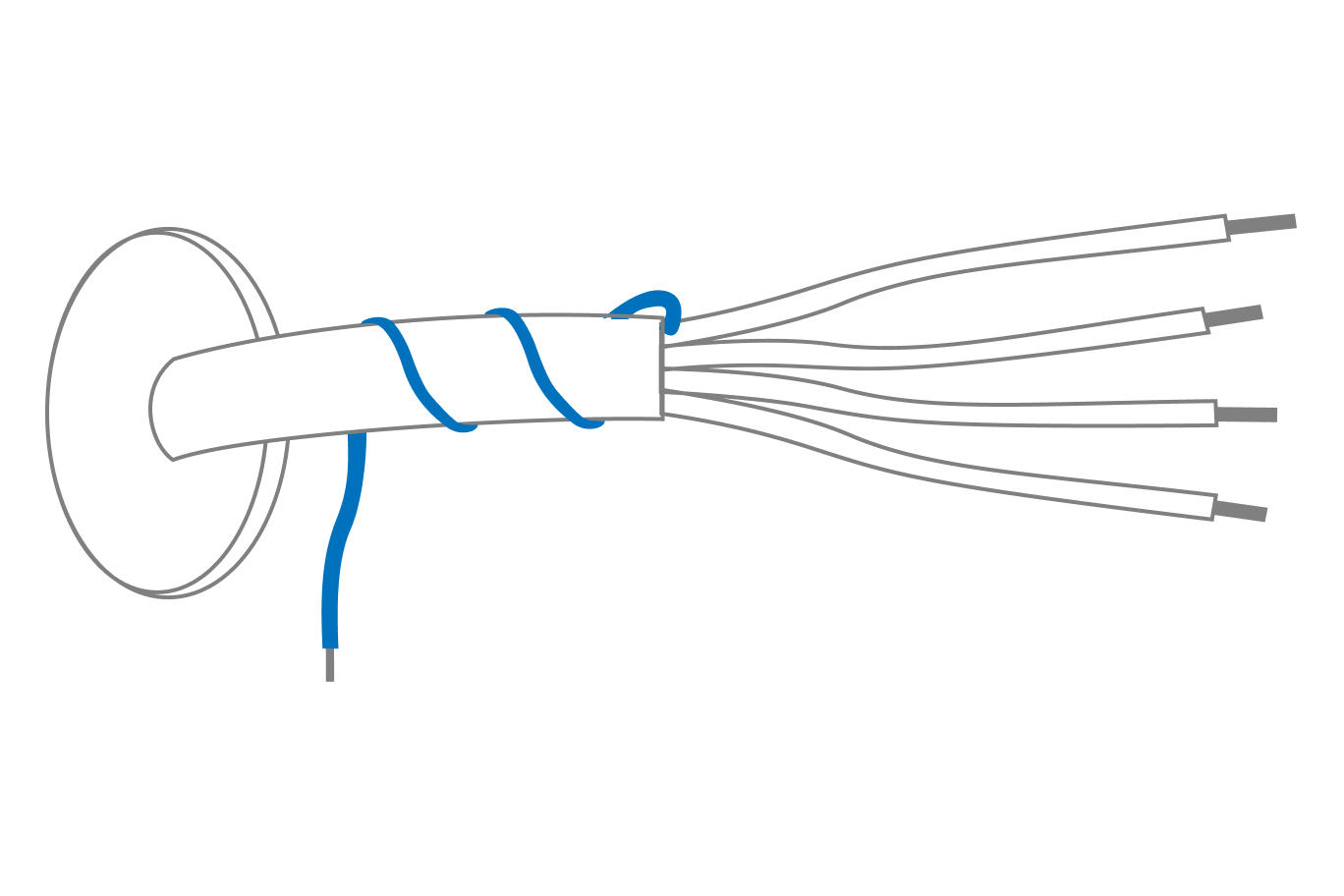

Sometimes a spare unused wire is tucked behind the wall plate — gently pull the wire bundle forward to check.At the furnace or air handler:
Open the control panel (after turning off power) and look for a wire connected to the C terminal on the control board.
If a C-wire exists at your control board but not behind your thermostat, you can often repurpose an unused wire in the same cable to serve as the C-wire.
Don’t See a C-Wire? Here Are Your Options
If you don’t have a visible C-wire, you have a few possible solutions:
Repurpose a spare wire:
Many thermostat cables include an extra unused wire (often blue or brown). You can connect that wire to the C terminal on your furnace’s control board and to the C terminal on Mysa for Central HVAC.
Install Mysa’s C-Wire Adapter (CWA):
The easiest and most reliable way to add a common wire if you don’t have one available. The CWA provides a constant 24 V power source to your Mysa for Central HVAC without altering your existing wiring layout.
Introducing the Mysa C-Wire Adapter (CWA)

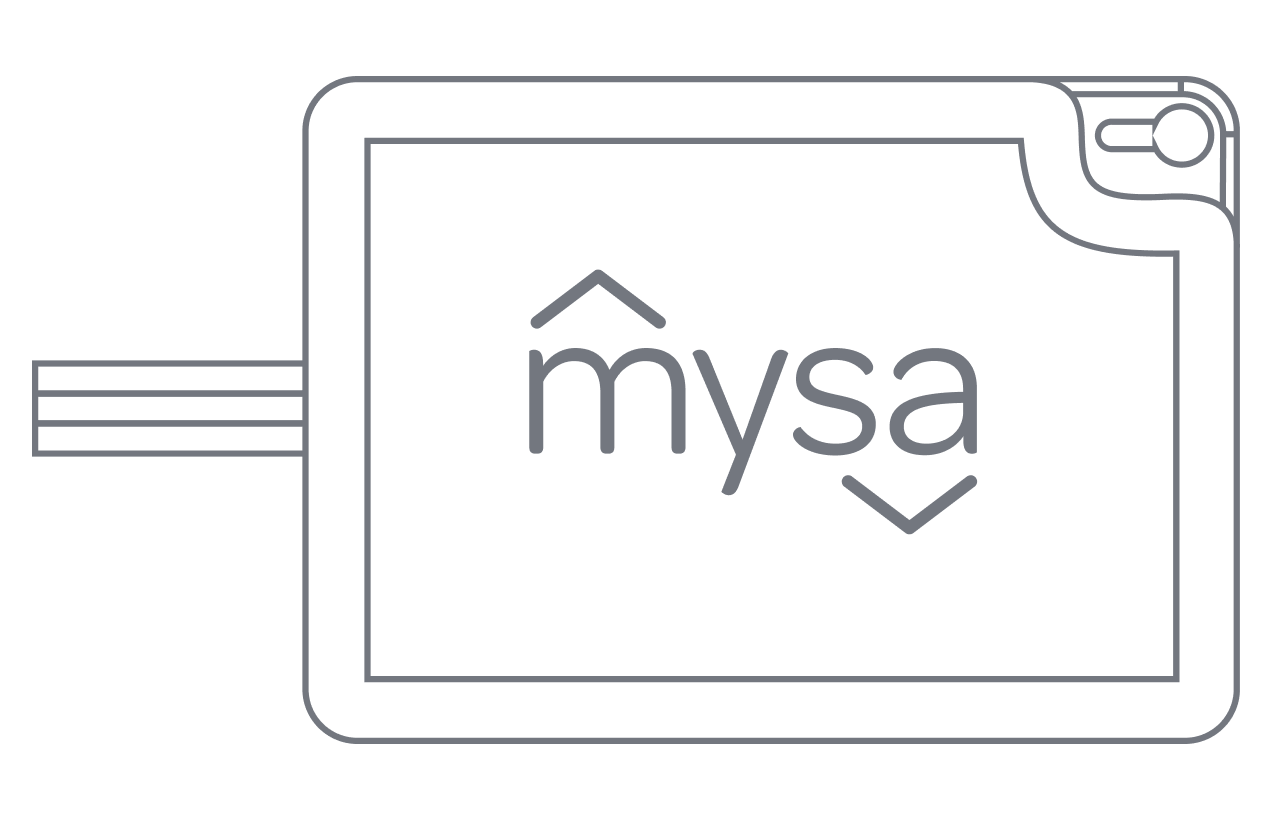

The Mysa C-Wire Adapter (CWA) is a small device installed near your HVAC system’s control board. It provides your Mysa for Central HVAC thermostat with a stable 24 V power connection even if your wiring doesn’t include a dedicated C-wire.
Key Features:
Works with any 24 V central HVAC system compatible with Mysa for Central HVAC.
Compact module (approx. 12″ harness) that connects near your furnace control board.
Color-coded harness for easy installation:
Red → R
Blue → C
White → W / WOB
Green LED indicator confirms 24 V power presence.
Includes switch for proper configuration per system type (detailed in install guide).
Installer Note: The CWA is typically mounted near your furnace’s control board. Always turn off power at the breaker before connecting wires or removing the furnace panel.
When to Use the CWA
No C-wire is present in your thermostat cable.
You cannot repurpose a spare wire.
You prefer not to pull new thermostat wiring through the wall.
The Mysa CWA is designed for quick, safe installation and is included in select kits or available separately in Mysa’s accessories store.
Quick Summary — Choosing Your Path
| Situation | Solution | Recommended Action |
|---|---|---|
| You already have a C-wire at thermostat and furnace. | No extra hardware needed. | Install Mysa for Central HVAC normally. |
| There’s a spare unused wire in your cable. | Repurpose it as your C-wire. | Connect to C terminal at both ends. |
| No spare wire or C-wire available. | Use the Mysa C-Wire Adapter (CWA). | Install near furnace control board and follow CWA guide. |
